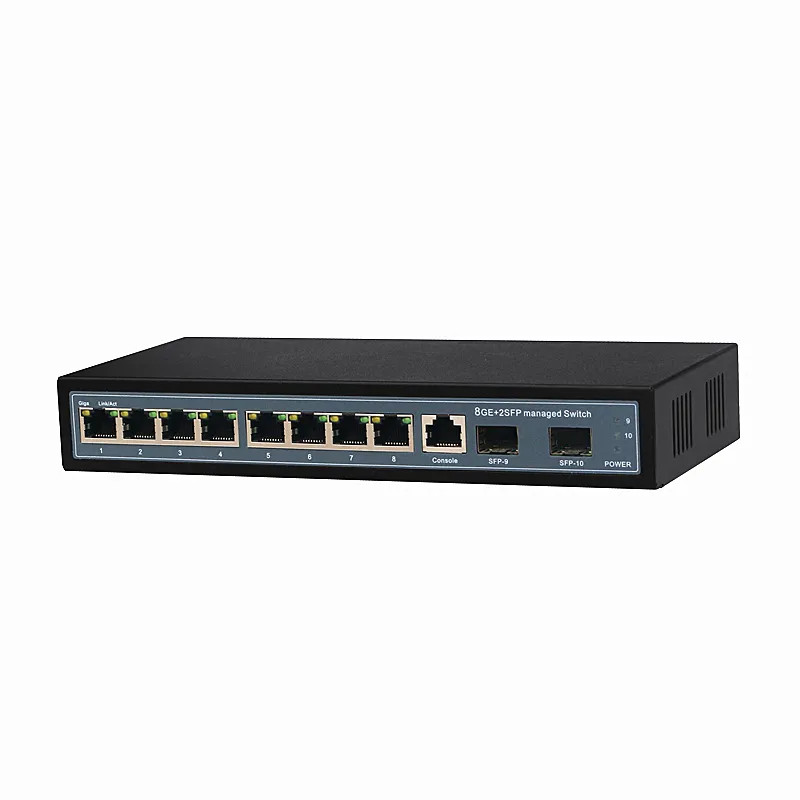

OED/ODM 11 ports 1000Mbps Layer 2 Managed Ethernet network switch

Short Description:

HX-8G2S is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. 8 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC) ,Provide a comprehensive security protection system,Perfect QoS strategy and rich VLAN function,Management and maintenance are simple and can be applied to small and medium enterprises,Core layer of community and school. System integration against false halt system, when the system resources exhausted or the system suspended tasks and other unexpected circumstances, the system will automatically restart, to ensure reliable operation of the network.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

● 8 ports 10/100/1000Mbps POE+RJ45+ 2*SFP(mini GBIC);
● comprehensive security protection system to ensure long-term stable operation of the network;
● rich QoS strategy and ACL access control function, multi service, efficient integration operation;
● Port convergence and spanning tree protocol improve the ability of link redundancy backup;

● Provide secure, flexible ways of providing Web, network management, CLI command line, SNMP, etc.
● provide network diagnosis, cable inspection, system logs and other functions, simple maintenance;
● Support Surge protection: Common mode 4KV; ESD: Air 8KV, Contact 6KV.

Specifications

Product Model	HX-8G2S
Product Name	11-Port Gigabit PoE switch
Total Power of Machine	200W
Power	AC100-240V/50-60Hz
Ethernet	8* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port+RJ45
Switching Capacity	20Gbps
Pack forward rate	14.44Mpps
Giant frame	Giant frame
MAC Address	8K
Forward mode	Storage forwarding
Power Voltage	Input voltage: AC100-240V/50-60Hz Power supply power: 12V
Working Environment	Working Temperature: -10~50°CStorage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing
