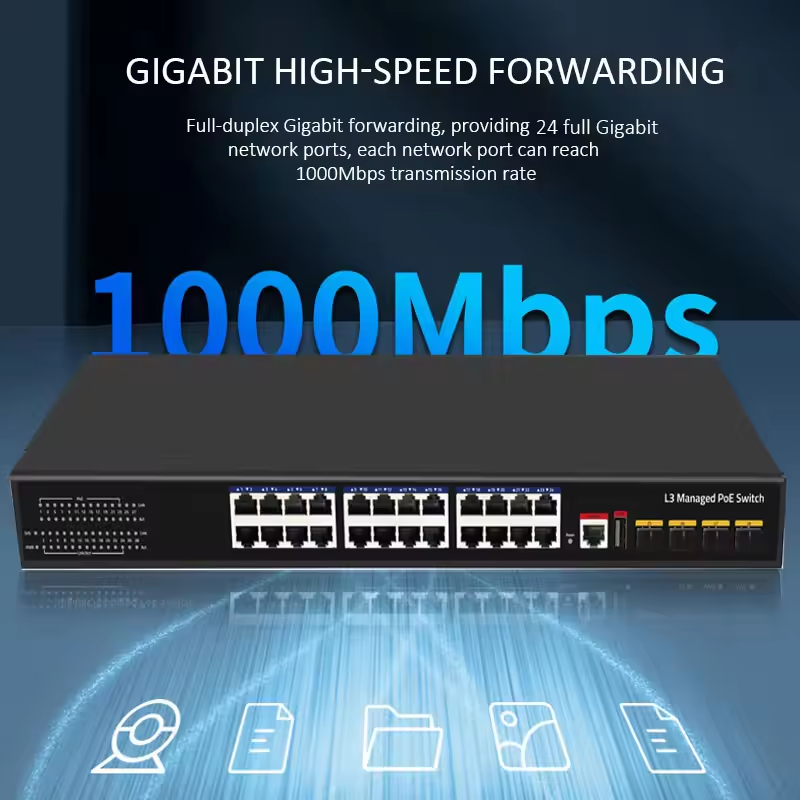

L3 POE switch 500W 10/100/1000 10G SFP 24 Ports Gigabit Managed Industrial Switch

Short Description:

This Gigabit Smart Switches with Remote Management provides a great value, with configurable L3 network features like VLANs and PoE operation scheduling,

allowing SMB customers to deploy PoE-based VoIP phones, IP cameras, video-over-IP endpoints and Wireless access points simply and securely. Advanced features

such as IPv4/IPv6 Layer 3 static routing, RIP，OSPF，LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN and Spanning Tree will satisfy even the most advanced small business networks.

Send email to us

Product Detail

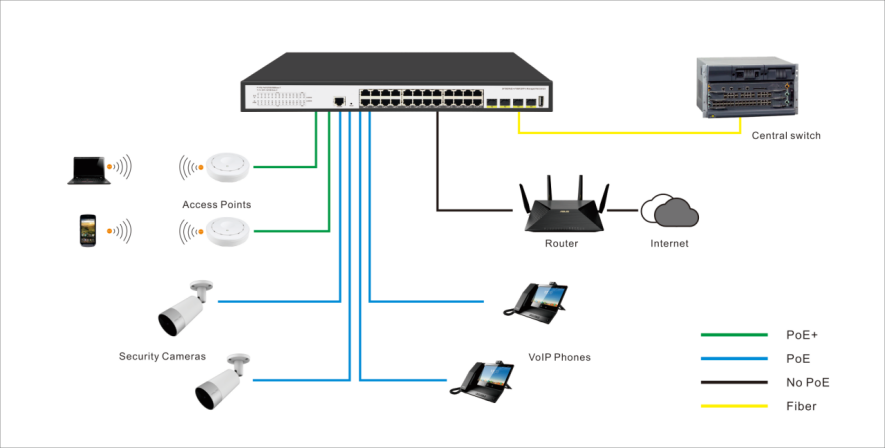

Applications

OUR FACTORY

Product Tags

Features

• Layer 3 static routing (IPv4 and IPv6) for interVLAN local routing

• Layer 3 routing,RIP v1/V2 ,OSPF V1/V2 ,VRRP

• IPv4 / IPv6 Dual stack and switch virtual interfaces (SVIs)

• Advanced VLAN and Private VLAN support for better network segmentation

• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication

• Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)

• Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based

• Auto “denial-of-service” (DoS) prevention

• IGMP Snooping and Querier for multicast optimization

• Dynamic ARP for increased security targeting a class of Man in the Middle attack

• Rate limiting and priority queuing for better bandwidth allocation

• Port mirroring for network monitoring

• Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings

• SNMP v1, v2c and RMON remote monitoring

Specifications

Technical Specifications	HX-24PGE4TF-L3M	HX-24PGE4TF-L3M-500W
10M/100M/1G RJ-45 copper ports	24	24
PoE / PoE+ ports	24 PoE+ (380W PoE budget)	24 PoE+ (480W PoE budget)
1G/2.5G/10G SFP+ (fiber) ports	4 (dedicated)	4 (dedicated)
Console Port (For config )	Yes	Yes
USB port (for config file upload/backup & firm-ware updates)	Yes	Yes
Performance Specification
CPU	Dual-Core 1GHz MIPS InterAptive CPU subsystem
Packet buffer memory (Dynamically shared across only used ports)	12 MB
Forwarding modes	Store-and-forward
Bandwidth	128 Gbps
Priority queues	8
MAC address database size (48-bit MAC ad-dresses)	16K
Multicast groups	1K
Number of IPv4 static routes	512
Number of IPv6 static routes	512
Number of VLANs	4094
Number of VLANs(Open QinQ)	16,760,836(4094*4094)
Number of ARP cache entries	1024 ARP
Number of DHCP snooping bindings	512
Access Control Lists (ACLs)	100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mpps)	96	96
Jumbo frame support (bytes)	Up to 12K packet size
Mean Time Between Failures (MTBF) @ 25°C	142,312 hours	125,542 hours
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames)	8.314µs; 8.612µs; 8.451µs	8.314µs; 8.612µs; 8.451µs
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames)	3.614µs; 3.545µs; 3.628µs	3.614µs; 3.545µs; 3.628µs
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames)	2.980µs; 3.101µs; 3.179µs	2.980µs; 3.101µs; 3.179µs
10G Fiber Latency (64-byte; 1518-byte; 9216-byte frames)	2.330µs; 2.561µs; 2.7129µs	2.330µs; 2.561µs; 2.7129µs
