IP67 Waterproof 2.4G&5.8G Access point router with antennas Outdoor Wireless AP

Short Description:

HWAP-20Q is an Qualcomm Solution 11ac high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard. It equipped Gigabit WAN port, fast Ethernet data rate make more than 60 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. The RF power can be reasonably adjusted for coverage based on the actual usage environment.


Product Detail

Applications

OUR FACTORY

Product Tags

Features

1. Having good transmission quality, high transmission rate, and a rate of up to 300Mbps;

2. Adopting Qualcomm chips, it greatly expands user capacity and can support up to 60+users;

3. RF adopts high-power FEM, with stable performance and longer coverage;

4. The addition of lightning protection board components greatly enhances the protective ability of the equipment;

5. External 2 2.4G omnidirectional fiberglass antennas, each with a gain of 8dBi;

6. Support 24V POE power supply.

Specifications

Model HWAP-20Q
Product Keyword Outdoor Wireless Access Point
Chipset Qualcomm QCA9531+QCA9887
Flash 16MB
RAM 128MB
Standard IEEE802.11b/g/n/a MIMO
Frequency 2.4GHz + 5.8GHz
Wireless Data Rate 750Mbps
Interface 1 * 10/100Mbps LAN+WAN Port
POE Power IEEE 802.3at 48V POE
RF Power 500mW
Antenna 2*N type connector,14dBi Panel Antenna
Operation Mode AP, Gateway, WISP, Repeater, WDS Mode
Firmware 1. SDK Firmware
2. OpenWRT Firmware
Recommend 60-80 Users
Coverage Distance 200 ~ 300 meters

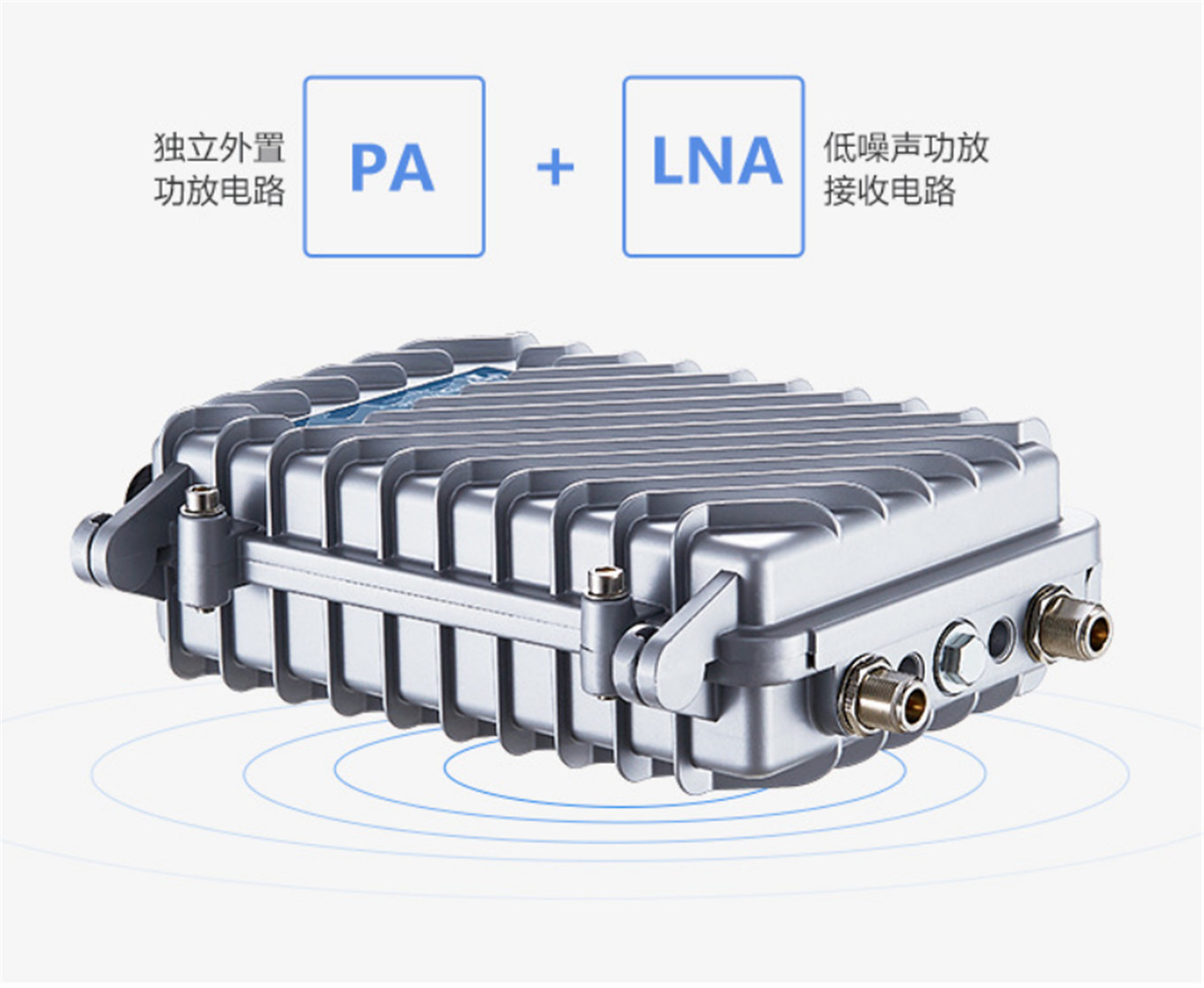

IP67 Waterproof 2.4G&5.8G Access point router with antennas Outdoor Wireless AP-01 (5)

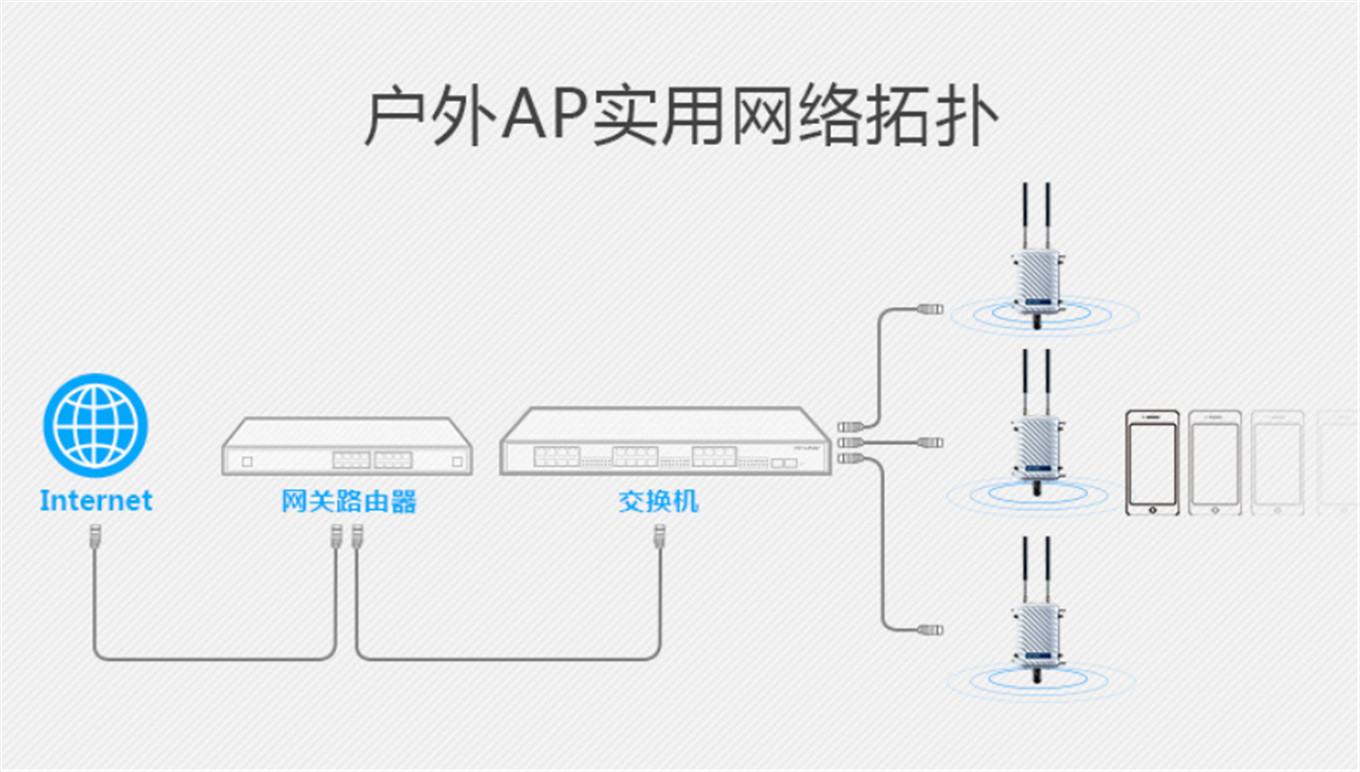

IP67 Waterproof 2.4G&5.8G Access point router with antennas Outdoor Wireless AP-01 (6)
