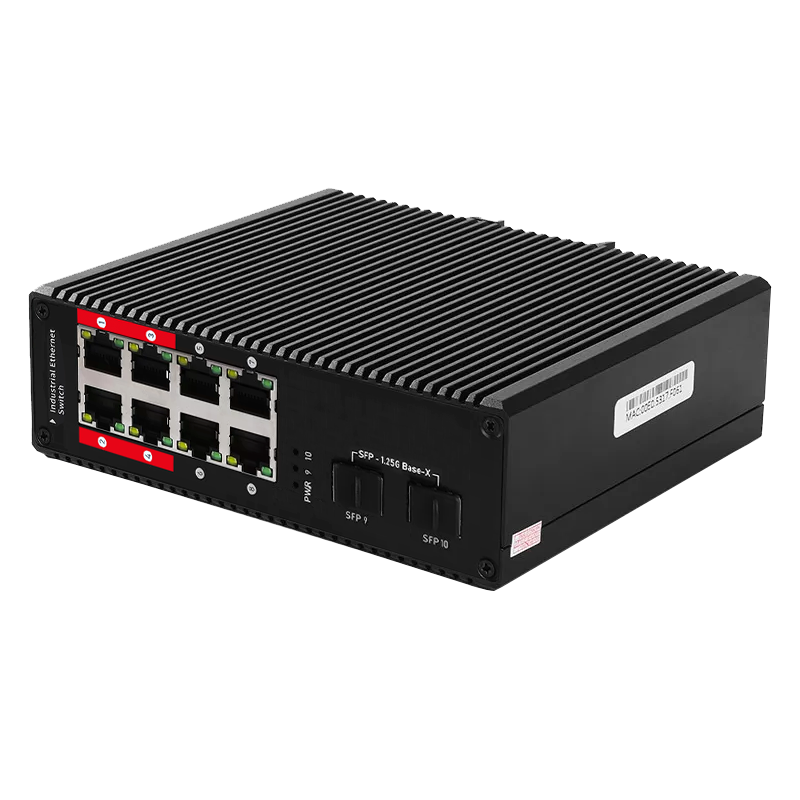

High Power 8 Ports 10/100/1000Mbps Industrial PoE Switch with 2 SFP Uplink

Short Description:

The industrial Gigabit PoE Switch is a standard 8-Port 10/100/1000Mbps High Power Industrial PoE Switch with 2 SFP

With the IP40 metal industrial case which provides a high level of immunity against electromagnetic interference and heavy electrical surges,

Being able to operate under the temperature range from -40 to 85 degrees C, the IES7211-8PGE2GF-4BT can be placed in almost any difficult environment.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

Ports: Provide 8*10/100/1000Mbps High Power PoE ports with 2*1.25Gbps SFP

PoE Standard: IEEE802.3af/at/bt Power over Ethernet (PoE) Compliant

Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX

Industrial Installation: Din Rail mounting installation

Wide Application: Designed for Railway, traffic etc some Industrial environment

Surge protection: Protect the device from lighting surges and others electrical hazards

Working Temperature: -40 to 85 degrees operating temperature

Considerate Design: IP40 Industrial enclosure

Easy to use: Plug and play, No configuration required

Specifications

Model	HX-8PGE2GF-4BT
Hardware Specifications
ports	8* 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 2* 1.25GMbps SFP Slot
Connector	Removable 4-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for Power 2
LED Display	Power Indicator: PWR(green).Network Indicator: Link(yellow) SFP: Green
Power requirements	48~56V DC
Installation	DIN-rail kit
Switch Performance	Backplane bandwidth	20Gbps
	Packet forwarding rate	16.86Mpps
	MAC address	4k
	Flow control Back pressure for half duple. IEEE 802.3x pause frame for full duplex
Enclosure	IP40 Metal case
ESD Protection	6KV ESD
Dimension(W x D x H)	50 x 110 x 150mm (1.97in x 4.33in x5.91in )
Weight	<0.8Kg
Power over Ethernet (PoE) Specifications
Network standard	IEEE802.3i 10 BASE-TIEEE802.3u 100 BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3bt Power over Ethernet IEEE802.3az EEE
PoE Standard	IEEE 802.3af Power over Ethernet/PSEIEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3bt Power over Ethernet Plus+/PSE
PoE Supply Type	12/45(+), 36/78(-) End-span
PoE Power Output	Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per Port 54V DC, 1650mA. max. 90 watts (IEEE 802.3bt) (1—4Port)
Environment
Environment specification	Operating temperature: -30℃~65℃，operating humidity: 5％~95％
	Storage temperature: -40℃~75℃，storage humidity: 5％~95％
Warranty	5 Years
