Enterprise Wi-Fi 3000Mbps dual-band wireless ceiling Access Point Wi-Fi 6

Short Description:

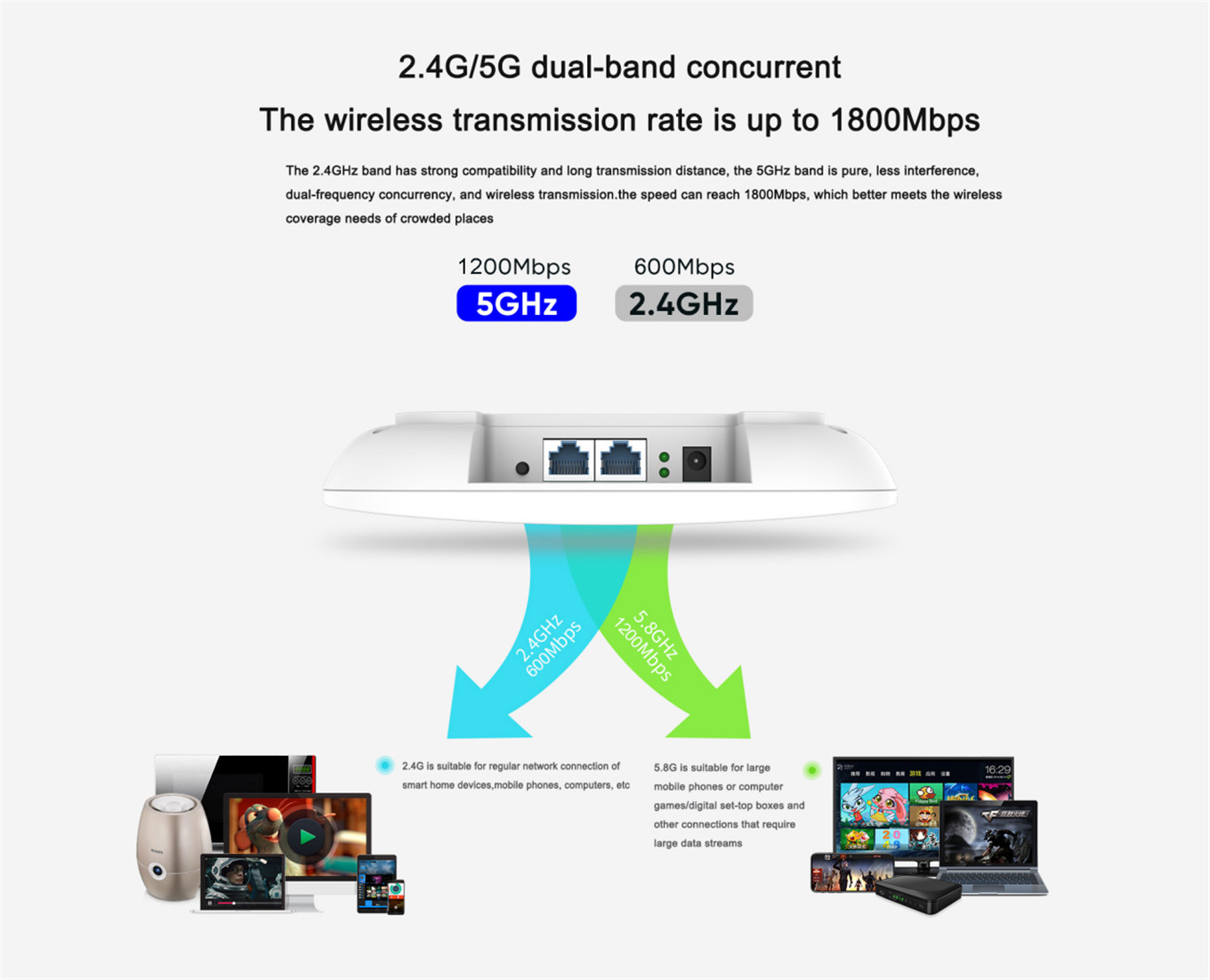

AX830-P5 is an 11ax indoor dual band ceiling AP that provides 2.4G and 5.8GHz dual band wireless services. 2.4G provides an access rate of 574Mbps, while 5G provides an access rate of 2402Mbps. It is widely used in high density access environment such as university campus,concert venue, gymnasium, etc.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

1. Support hardware watchdog function, automatic recovery of abnormal devices, maintenance free;

2. Adopting IPQ5018 chip, supporting 160Mhz, greatly expanding user capacity and supporting 128+users;

3. The heat sink adopts a buckle structure design and a special surface coating treatment, resulting in a more ideal heat dissipation effect;

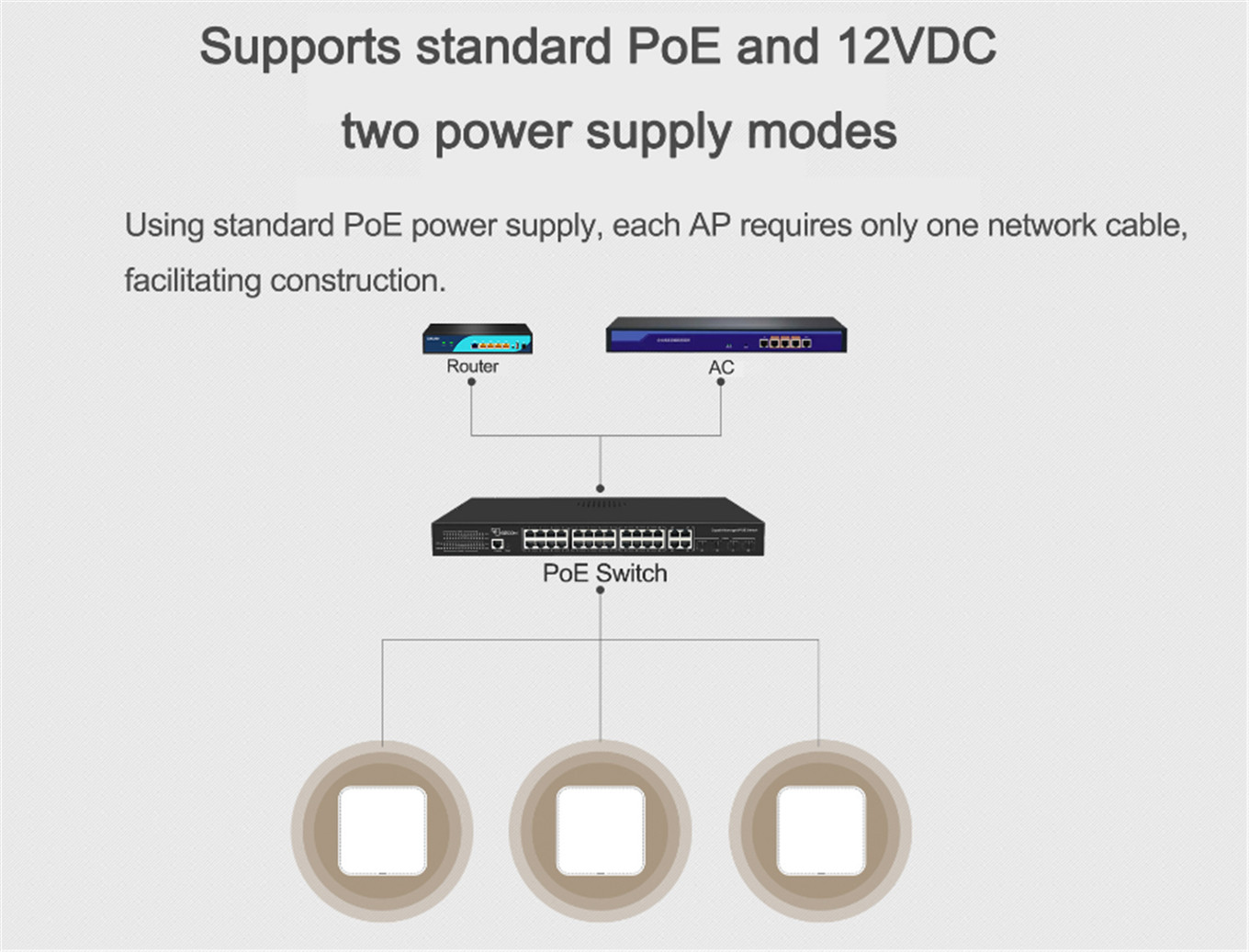

4. Supports two power supply methods: 48V PoE and DC 12V.

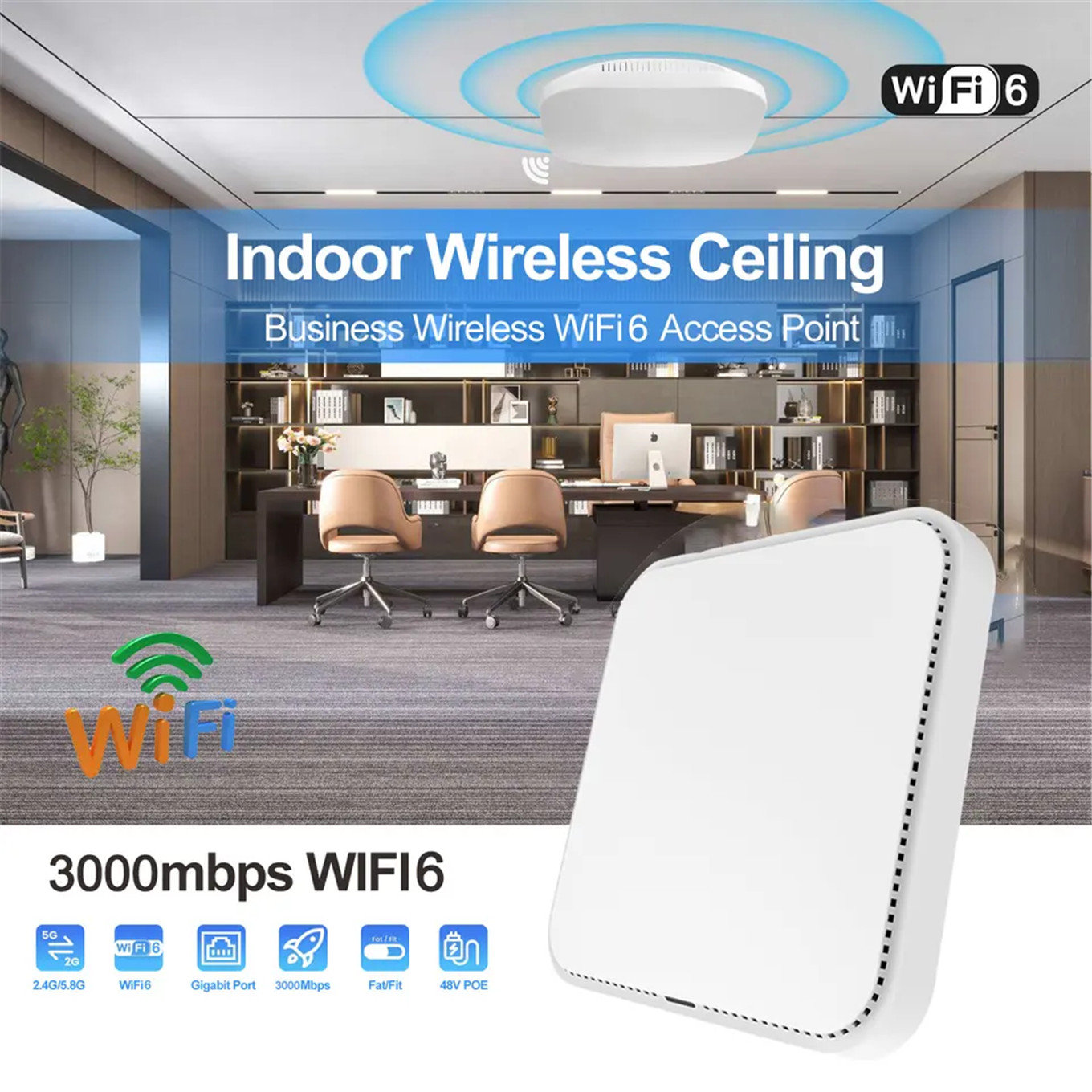

Enterprise Wi-Fi 3000Mbps dual-band wireless ceiling Access Point Wi-Fi 6-01 (5)

Specifications

Hardware
Model	AX830-P5
Chipset	IPQ5018+6122+8337
Standard	802. 11ax/ac/b/g/n
Flash	SPI NOR 8MB ( 1.8v) + NAND 128MB
Interface	1 * 10/ 100 / 1000 RJ45 WAN Port
	1 * 10/ 100 / 1000 RJ45 LAN Port
	1 * Reset button, press 10 seconds to revert to default setting
Antenna	Build in 4*4dBi dual band MIMO Antenna
Size	18618635.8mm
POE	48V (IEEE 802.3at)
DC	12V---- 1.5A
LED Indicator	Sys, WAN, LAN
End Users	128+
RF Data
2.4G Frequency	2.4GHz - 2.484GHz
2.4G Wi-Fi standard	802. 11b/g/n/ax
5.8G Frequency	4.9~5.9G
5.8G Wi-Fi Standard	802. 11 a/n/ac/ax
2.4G RF Power	≤ 20dBm
5.8G RF Power	≤ 19dBm
Modulation	MU-MIMO and DL/UL-OFDMA
Power Consumption	≤ 14W
Others
Working Mode	Gateway, AP
Networking Function	VLAN settings Cloud access support in gateway mode
Firmware Features:
wireless Functions	Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.
	Support SSID hidden
	Support seamless roaming, 802. 11kvr standard.
	Support 5G Prior for a faster Ethernet.
	Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3
	Support MAC filter
	Support Wi-Fi time on/off to save energy
	Support client isolation to improve the wireless stability
	Support RF power adjustable, adjust the RF power based on environment.
	Support user quantity limited, Max 64 users to access each band.
Device Management	Back-up the configuration
	Restore the configuration
	Reset to factory default
	Reboot the device: including time reboot or reboot immediately
	Admin management password modify
	Firmware upgrade
	System log
	Support firmware GUI web management, AC controller management, remote management and cloud management
Protocols	IPv4
