Dual band gigabit ceiling mounted AP PoE powered wall mounted wireless Indoor AP

Short Description:

This Indoor AP FAP780S-P2 is an an 11ax Wi-Fi standard MTK Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming with 2.4G providing 574Mbps access rate and 5G providing 1201Mbps access rate, which is faster, more stable, and covers a wide range.

It is equipped Gigabit WAN & LAN ports,support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower sub-carrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.


Product Detail

Applications

OUR FACTORY

Product Tags

Features

1. Support hardware watchdog function, automatic recovery of abnormal devices, maintenance free;

2. Adopting IPQ5018 chip, supporting 160Mhz, greatly expanding user capacity and supporting 128+users;

3. The heat sink adopts a buckle structure design and a special surface coating treatment, resulting in a more ideal heat dissipation effect;

4. Supports two power supply methods: 48V PoE and DC 12V.

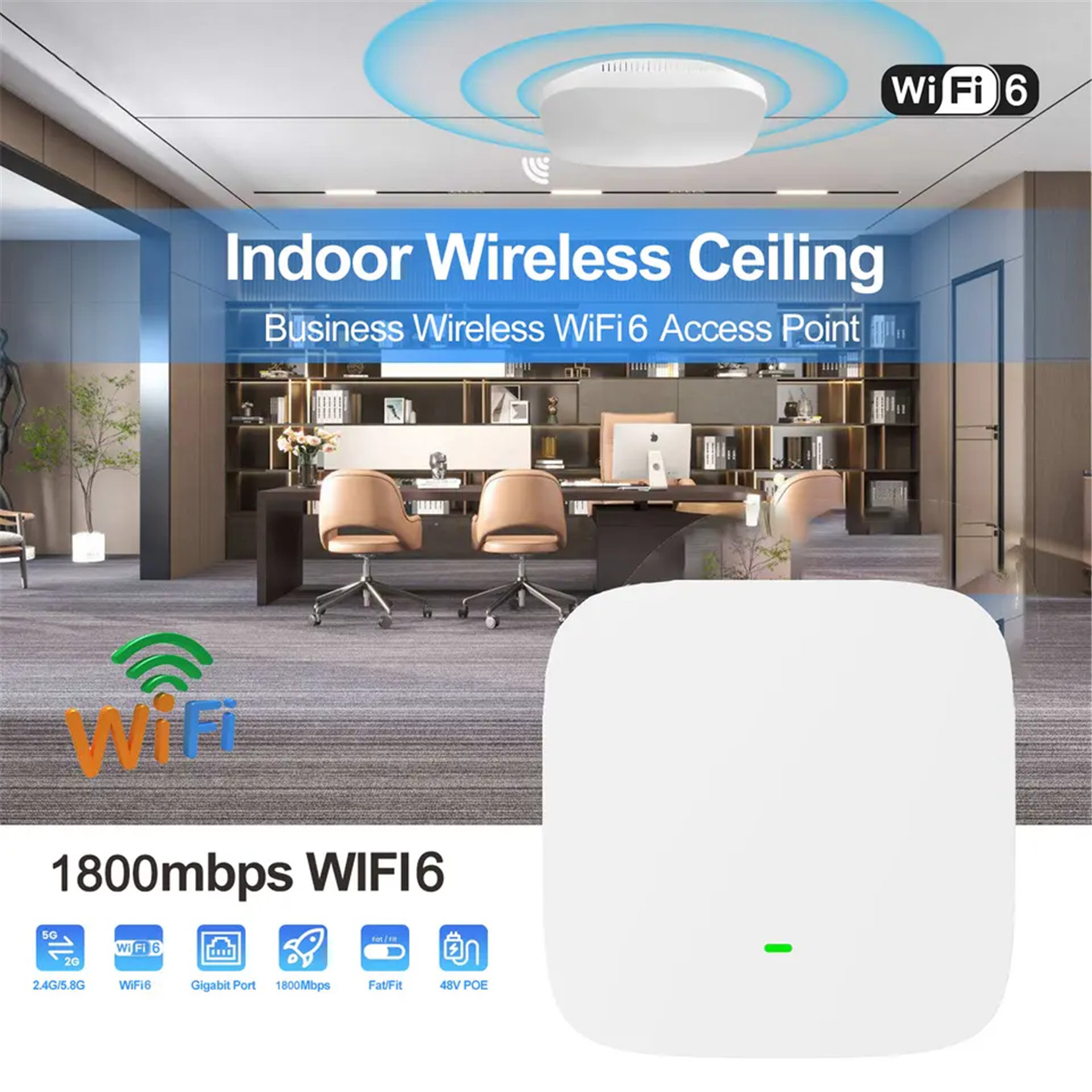

Dual band gigabit ceiling mounted AP PoE powered wall mounted wireless Indoor AP-01 (5)

Specifications

Hardware:
Model FAP780S-P2
Chipset MT7621A+MT7905N+MT7975DN
Memory 256MB
Flash SPI NOR 16MB
Interface 1 * 10/100/1000Mbps RJ45 WAN Port, POE power support
1 * 10/100/1000Mbps RJ45 LAN Port
1 * Reset button, press 10 seconds to revert to default setting
Antenna Build in 5dBi 2.4GHz MIMO Antenna
Build in 4dBi 5.8GHz MIMO Antenna
Size 168*168*32mm
POE 48V 0.5A
DC 12V 1A
LED Indicator Sys, 2.4G WIF, 5.8G WIFI, LAN, WAN
Max Power Consumption < 15W
ESD ±6KV
RF Data
Frequency 2.4G:802.11b/g/n/ac/ax: 2400MHz~2484MHz
5GHz:802.11a/n/ac/ax: 5150MHz ~5850MHz
Country code FCC、IC、ETSI、MKK、MKK1、MKK2、MKK3、NCC、RUSSIAN、CN
Modulation OFDMA 1024-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 1800Mbps
RF Power <18dBm
PPM ±20ppm
Max Users 120+
Others:
Package Contents 1800Mbps Dual Band wireless access point
Ethernet Cable
Quick Installation Guide
Setting Accessory
Environment Operating Temperature: -20~45 ℃
Storage Temperature: -40~70 ℃
Storage Humidity: 5%~95% non-condensing
Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System
Firmware Features:
Operation mode Wireless AP: Plug and Play.
Gateway: Dynamic IP/Static IP/PPPoE
Wireless Functions Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4
Support SSID hidden
Support SSID broadcast
Support 5G Prior for a faster Ethernet.
Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK
Support MAC filter
Support Wi-Fi time on/off to save energy
Support client isolation to improve the wireless stability
Support RF power adjustable, adjust the RF power based on environment.
Short GI Enable and Disable
Support user quantity limited, Max 128 users to access each band.
Networking Function VLAN settings
Cloud access support in gateway mode
Device Management Back-up the configuration
Restore the configuration
Reset to factory default
Reboot the device: including time reboot or reboot immediately
Admin management password modify
Firmware upgrade
System log
Support firmware GUI web management, AC controller management, remote management and cloud management
Protocols IPv4

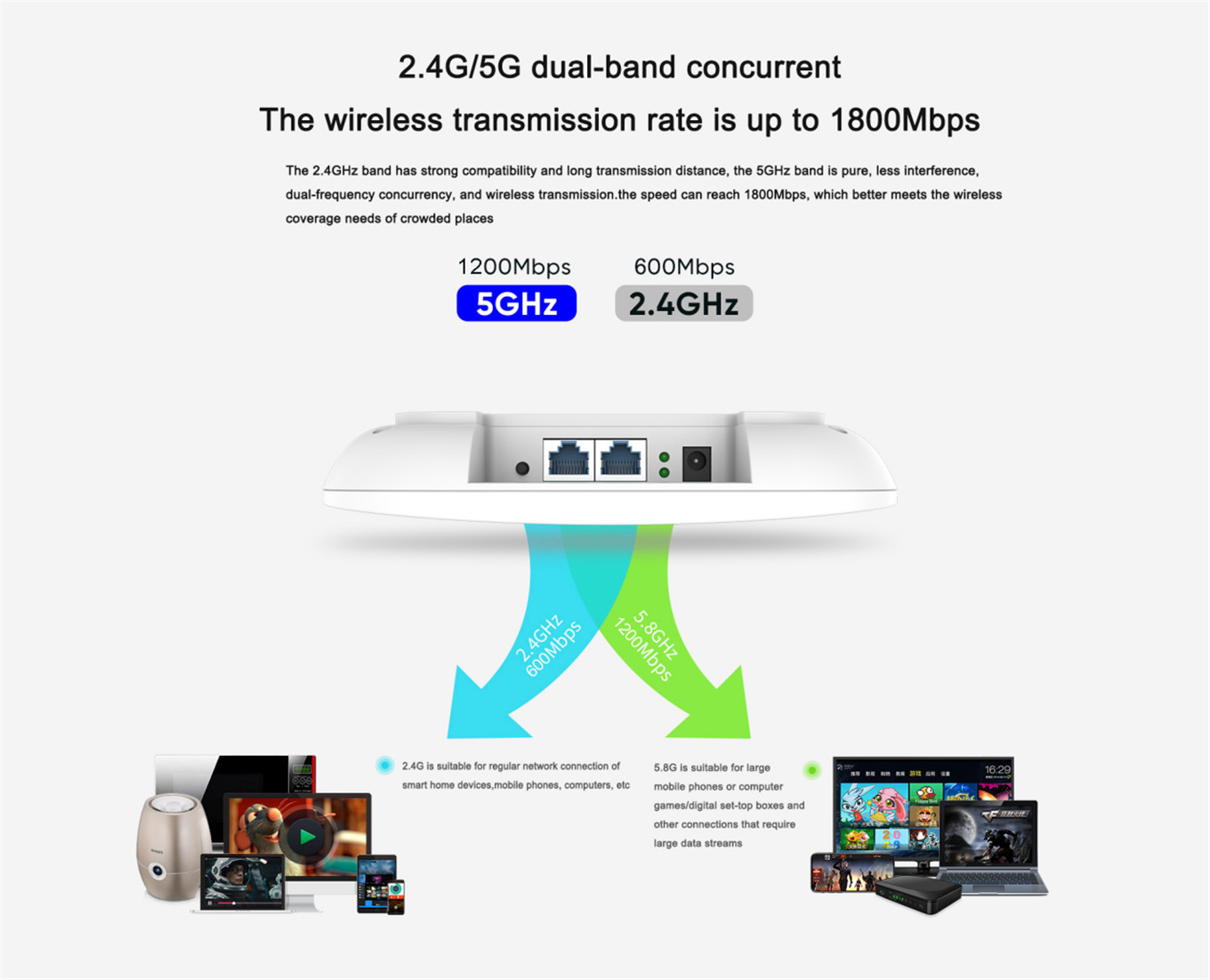

Dual band gigabit ceiling mounted AP PoE powered wall mounted wireless Indoor AP-01 (6)

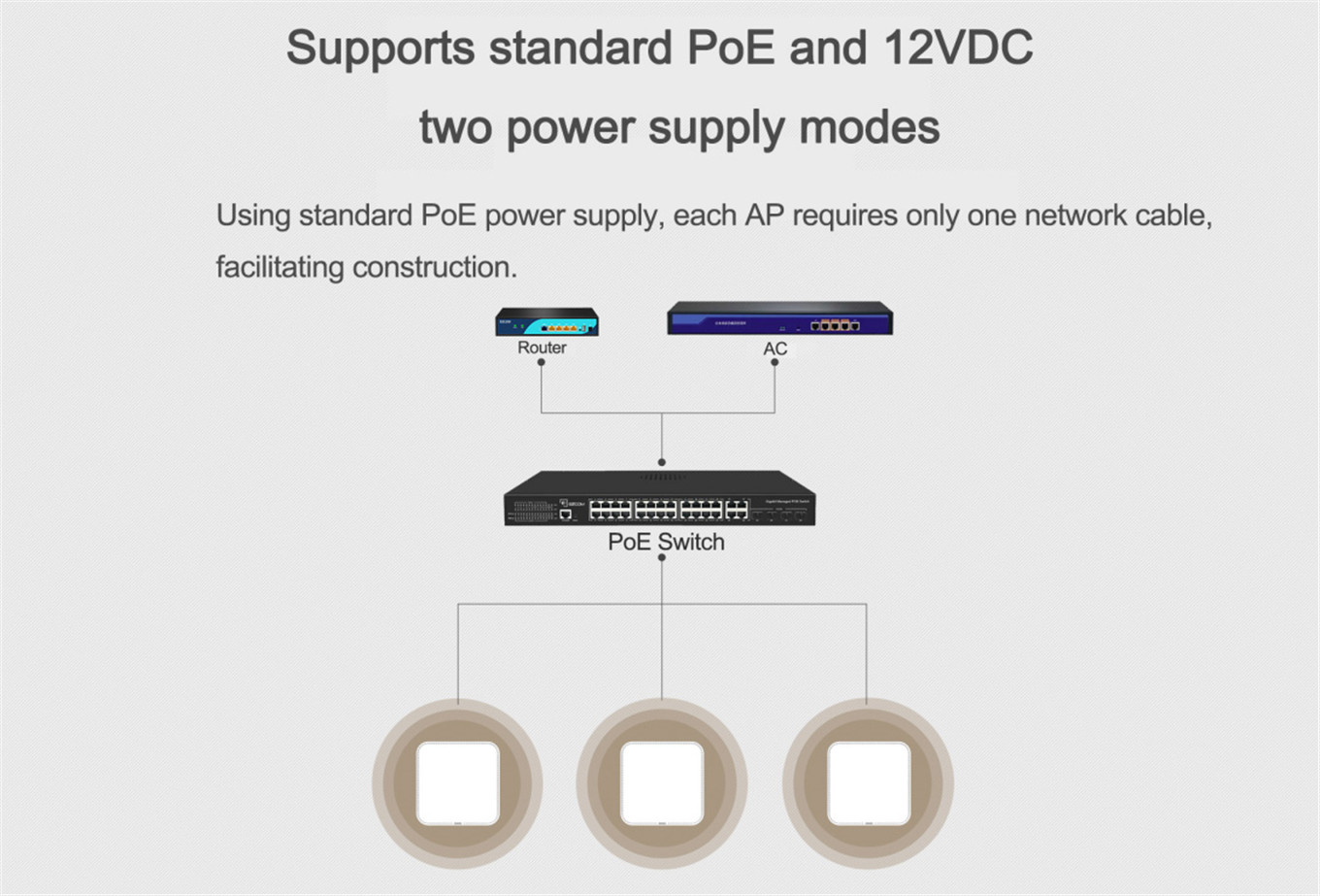

Dual band gigabit ceiling mounted AP PoE powered wall mounted wireless Indoor AP-01 (7)

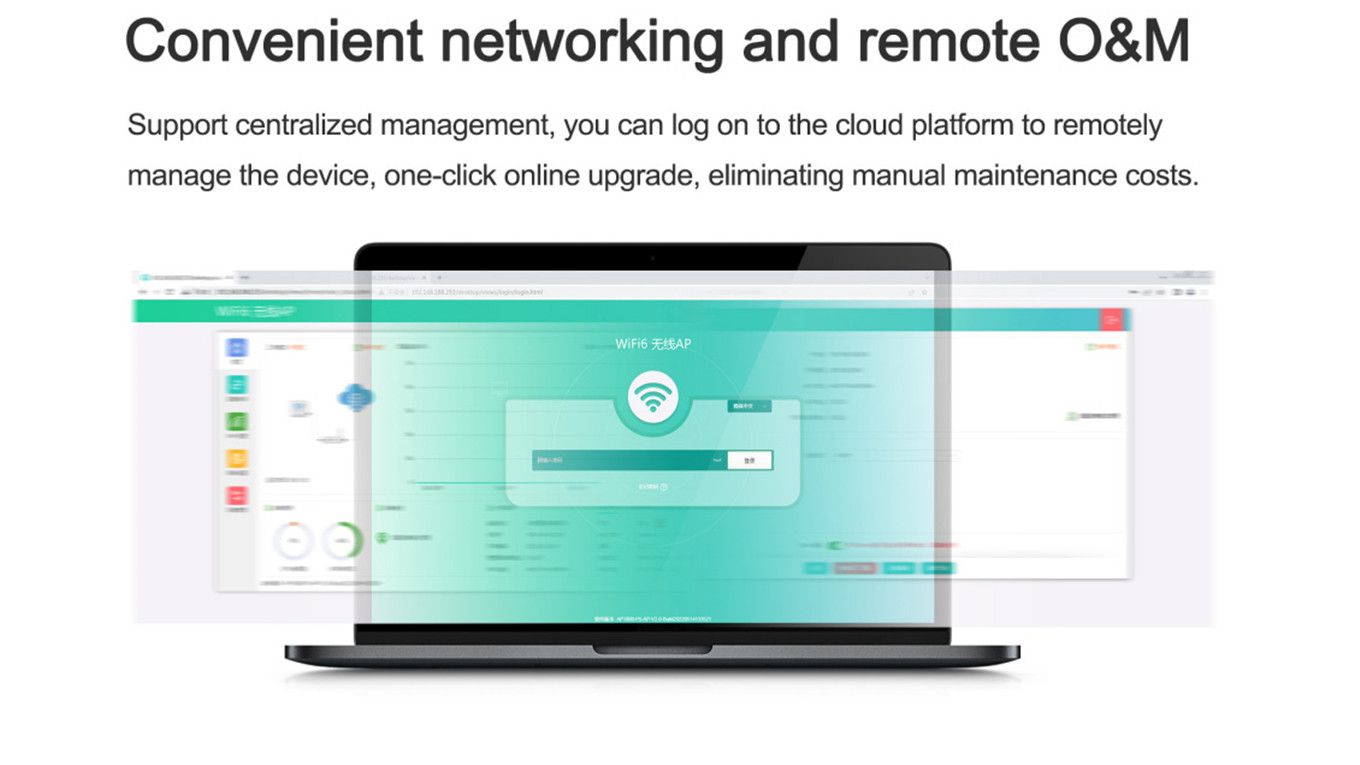

Dual band gigabit ceiling mounted AP PoE powered wall mounted wireless Indoor AP-01 (8)
Dual band gigabit ceiling mounted AP PoE powered wall mounted wireless Indoor AP-01 (9)
