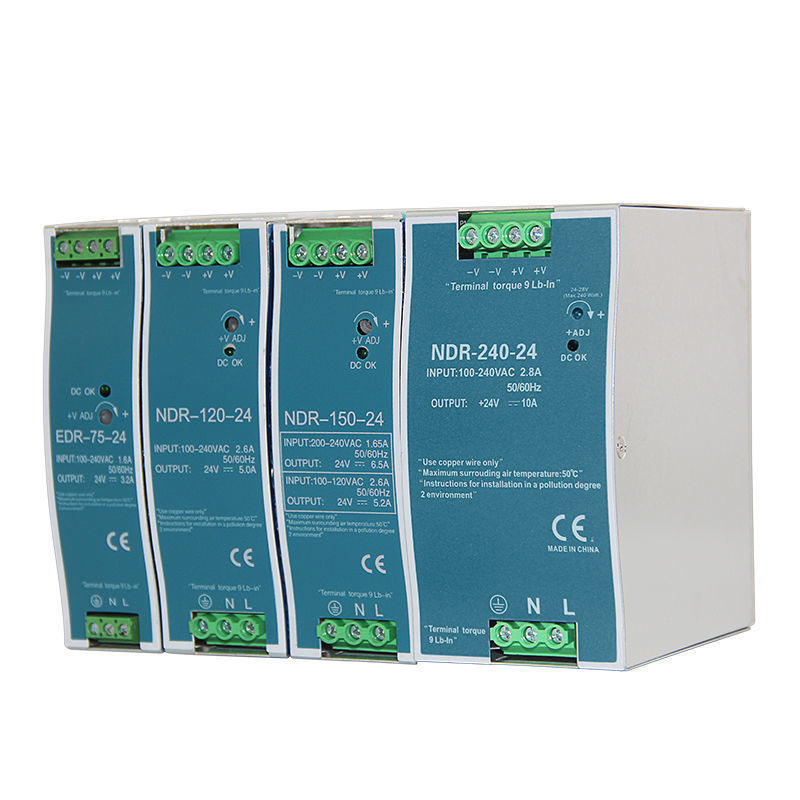

Din Rail power supply NDR-120-12 for industrial

● Universal AC input / Full range.

● High efficieney up to 92%

● Protections. Short circuit / Overload /Over voltage / Overload

● Can be installed on DIN rail TS-35/7.5 or 15

● EN61000-6-2 (EN50082-2) industrial immunity level

● 100% full load burn-in test

● 2 years warranty

● Widely used in Switch, industrial automation, device, etc.

Product Detail

● Universal AC input / Full range.

● High efficieney up to 92%

● Protections. Short circuit / Overload /Over voltage / Overload

● Can be installed on DIN rail TS-35/7.5 or 15

● EN61000-6-2 (EN50082-2) industrial immunity level

● 100% full load burn-in test

● 2 years warranty

● Widely used in Switch, industrial automation, device, etc.

NDR-120-12 120W Rail Switching Power Supply
Specs		Technical data
Output	DC voltage	12V	24V	48V
	Rated current	10A	5A	2.5A
	Rated power	120W	120W	120W
	Ripple and noise ①	＜120mV	＜120mV	＜150mV
	Voltage accuracy	±2%	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	±1%
	Linear adjustment rate	±0.5%
Input	Voltage range	85-264VAC 47hz-63hz (120vdc-370vdc: DC input can be realized by connecting AC / L +, AC / N (-))
	Efficiency (typical) ②	＞86%	＞88%	＞89%
	Working current	＜2.25A 110VAC ＜1.3A 220VAC
	Impulse current	110VAC 20A， 220VAC 35A
	Start, rise, hold time	500ms、70ms、32ms ：110VAC/500ms、70ms、36ms ：220VAC
Protect	overload protection	105% - 150% type: protection mode: automatic recovery after removing the abnormal condition of constant current mode
	Overvoltage protection	When the output voltage is more than 135%, the output will be turned off. It will recover automatically after the abnormal conditions are removed
	Short circuit protection	+VOWhen the abnormal condition of output is released, it will recover automatically
Environmental	Working temperature and humidity	-10℃～+60℃；20%～90RH
	Storage temperature and humidity	-20℃～+85℃；10%～95RH
Safety/EMC	Withstand voltage	Input output: 3kVac input ground: 1.5kVac output ground: 0.5kvac for 1 minute
	Leakage current	＜1mA/240VAC
	Isolation resistance	Input output, input shell, output shell: 500VDC / 100M Ω

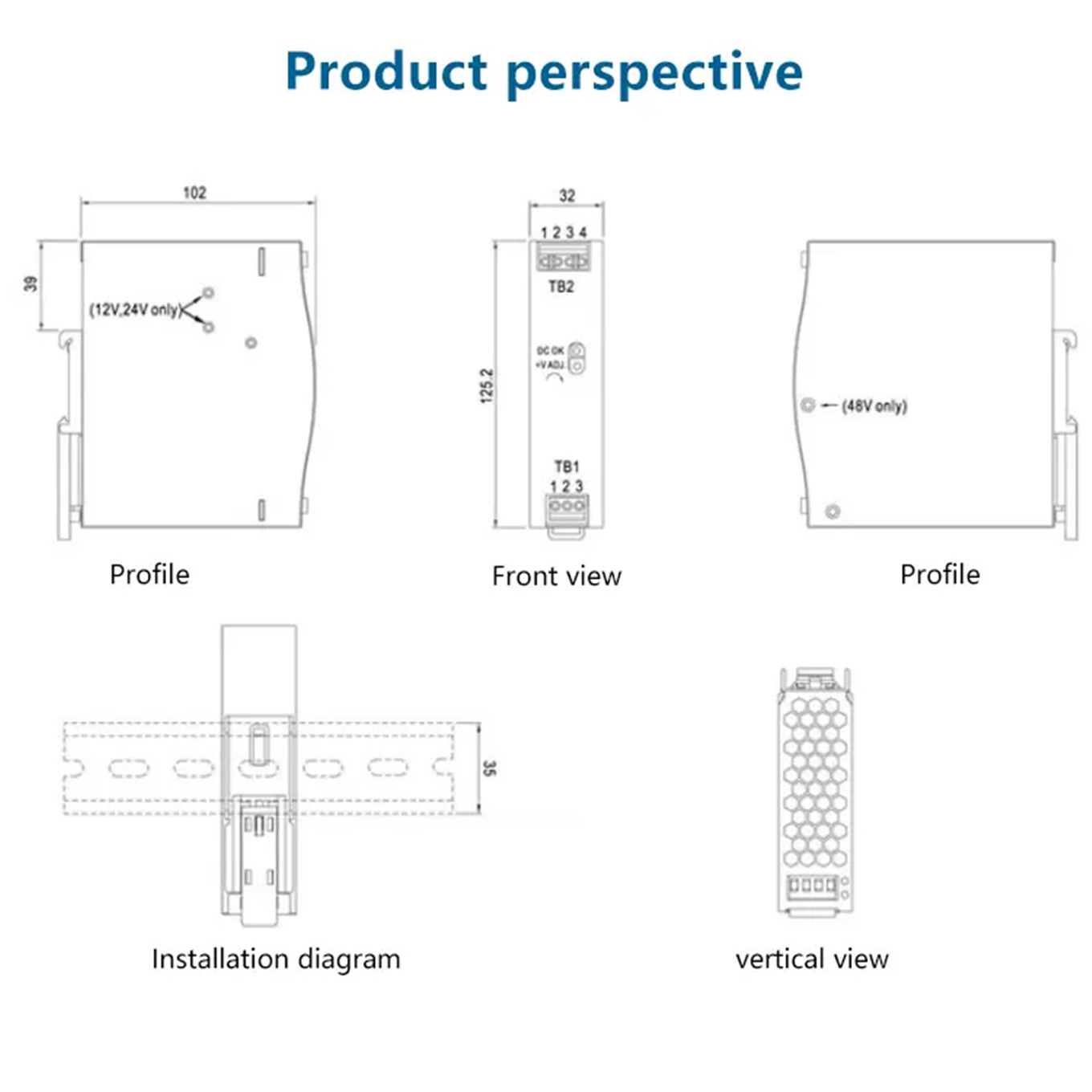

Other	size	40125113mm
	Net weight	600g
