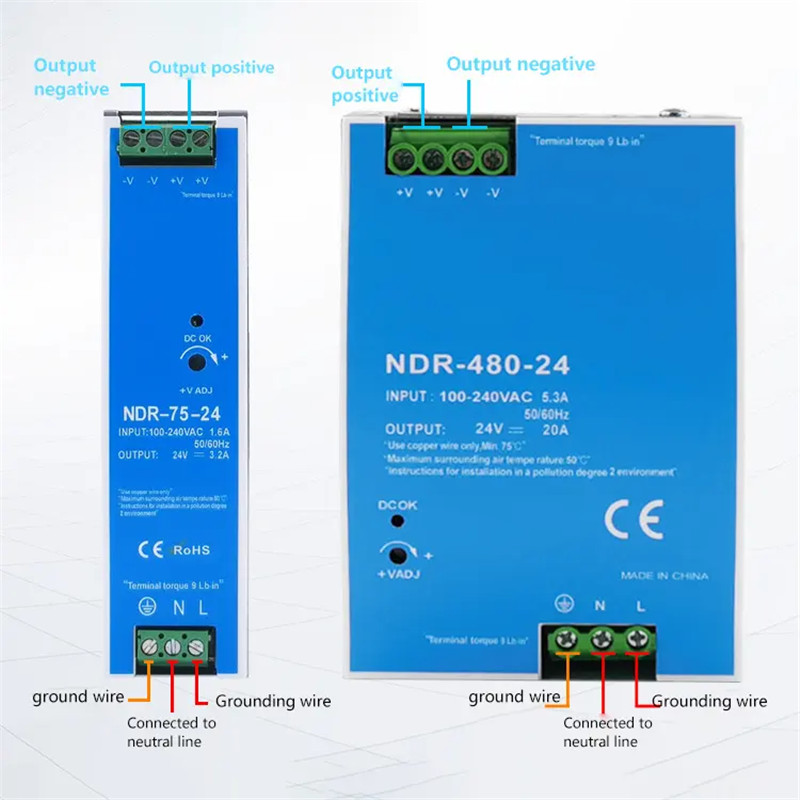

Din Rail Power Supply 24V 20A 480W NDR-480-24

Short Description:

Whether you need to power important electronic equipment in an industrial environment, commercial facility or even your home, our 480W Din rail power supply can meet your needs. This versatility makes it ideal for businesses of all sizes, ensuring efficient, uninterrupted power.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

• Widely used in Switch, industrial automation, stepper machine,device, etc.

• Universal AC input / Full range.

• High efficieney

• Protections. Short circuit / Overload /Over voltage / Overload

• 100% full load burn-in test

• 2 years warranty

Specifications

MODEL		NDR-480-12	NDR-480-24	NDR-480-36	NDR-480-48	NDR-480-50	NDR-480-60
OUTPUT	DC VOLTAGE	12V	24V	36V	48V	50V	60V
	OUTPUT POWER	480W	480W	480W	480W	480W	480W
	CURRENT RANGE	40A	20A	13A	10A	9.6A	8A
	RIPPLE & NOISE(max.)	100mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	110/220VAC by switcher
	AC CURRENT(Typ.)	0.35A/ 116VAC 0.18A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	72%	78%	78%	80%	82%	82%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<3.0mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated output voltage
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
OTHERS	DIMENSION	L85.5W125.2H128.5MM
	WEIGHT	12PCS/Carton/17.5KG
	SHELL MATERIAL	Aluminium
