Din Rail Gigabit managed industrial switch 8 gigabit RJ45 ports + 2 SFP fiber switch

Short Description:

This model is 8 gigabit RJ45 ports + 2*100/1000 SFP fiber slot switch for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. It can adapt to harsh outdoor environment with 3KV network port surge protection and ensure the reliability of the uninterrupted PoE system. Power input also uses industry-standard types of power.

Send email to us

Product Detail

Detail

Applications

OUR FACTORY

Product Tags

Features

● Automatically support IGMP (Multicasting)
● 8×10/100/1000BASE-T + 2x1000 BASE-X SFP
● LED indicators for monitoring power/link/activity
● Supports Daisy-Chain connection
● Supports Broadcast Storm Control
● Supports Relay output for power failure
● Super lightening protection, IP40 protection.
● Excellent heat elimination without cooling fan.
● Redundant dual DC power inputs.
● Redundant Power Inputs
● Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
● Harsh industrial environment or higher requirement
● -40℃-85℃operating temperature range.
● Supports Wall-mount and DIN-Rail installation for lightning protection.

Specifications

Product Name	Din Rail Gigabit managed industrial switch
Product Model	HX-IGSF2T8
Interface	8 gigabit RJ45 ports + 2*100/1000 SFP fiber slot
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Fiber port	LC,SC,ST,FC Optional
	PoE ports: 4 port support PoE
	Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at)
	PoE port Auto detect AF/AT devices
	Output Voltage: DC52V
	Power Pin Assignment:1/2+;3/6-
	Power Type: End-span( Mid-span optional)
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM Single-mode: 20/40/60/80KM
Performance Specification	Bandwidth: 1Gbps Packet Buffer Memory:512K Packet Forwarding Rate:148800pps/port MAC Address Table: 1K
Forwarding Mode	Store-and-Forward
Protection	Lightening protection, IP40 protection
LED Indicators	Power: PWR; Link; PoE; Link/Act
Power Supply	Input Voltage: DC52V (12~57V) /Terminal block

Working Environment	Working temperature: -40~75℃ ; Storage temperature: -45~85℃ Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC6100-4-3 (RS): 10V/m (80MHz-2GHz) IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail or Wall mounts
Packing List	1×Industrial PoE Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit
Certification	CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B
MTBF	300,000 hours

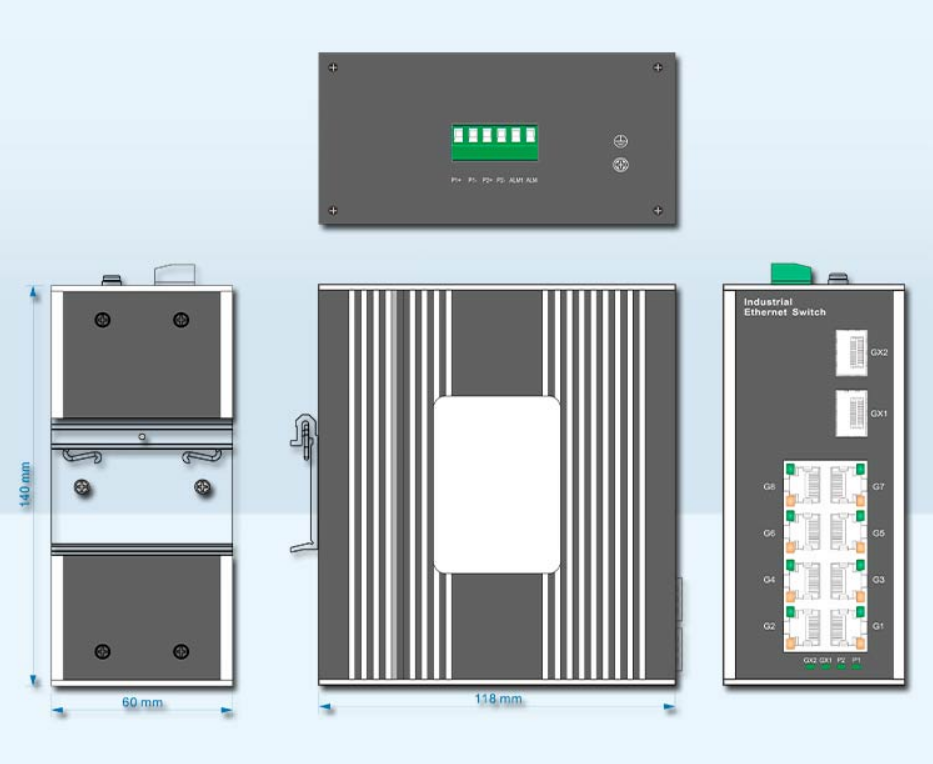

Weight & Size	Product Weight: 0.5 KG Packing Weight: 1.1 KG Product size (L×W×H): 15.3cm× 11.5cm× 4.7cm Packing size(L×W×H): 21.6cm× 20.6 cm× 6.7 cm

FAQ

1. Can the switch be put on the shelf?

Yes, most of our switches are designed to be rack-mountable. They come with the necessary mounting brackets and screws for easy mounting into standard racks, saving valuable space in network setups.

2. Does the switch provide technical support?

Of course! We provide technical support for all switches. You can contact our customer support team via phone, email or live chat for any assistance or troubleshooting queries regarding your switch.

3. How to request after-sales service?

To request after sales service, please contact our customer support team by phone, email or the designated contact form on our website. Be sure to provide relevant details about your purchase and the issue you are experiencing.

4. Is there any charge for after-sales service?

If the product/service is under warranty or if the problem is caused by a manufacturing defect, there will be no charge for after-sales service. However, if the problem is caused by misuse or other non-warranty related factors, a fee may cause.

5. How can I give feedback on your after-sales service experience?

We attach great importance to customer feedback, including after-sales service experience. You can provide feedback through various channels, such as online review platforms, the feedback form on our website, or by contacting our customer support team directly. Your comments help us improve our services.
