Commercial WiFi 6 high-power wireless AP 1800Mbps router indoor ceiling AP

Short Description:

The AX840-P5 is an indoor 11ax dual frequency ceiling AP, with 2.4G providing 574Mbps access rate and 5G providing 1201Mbps access rate, which is faster, more stable, and covers a wide range.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

1. Having better transmission quality, higher transmission rate, and a concurrent rate of up to 1800Mbps;

2. Adopting IPQ6000 chip, greatly expanding user capacity and supporting over 200 users;

3. The heat sink adopts a buckle structure design and a special surface coating treatment, resulting in a more ideal heat dissipation effect;

4. The RF adopts high-power FEM, which has stable performance, wide wireless range, and strong anti-interference ability.

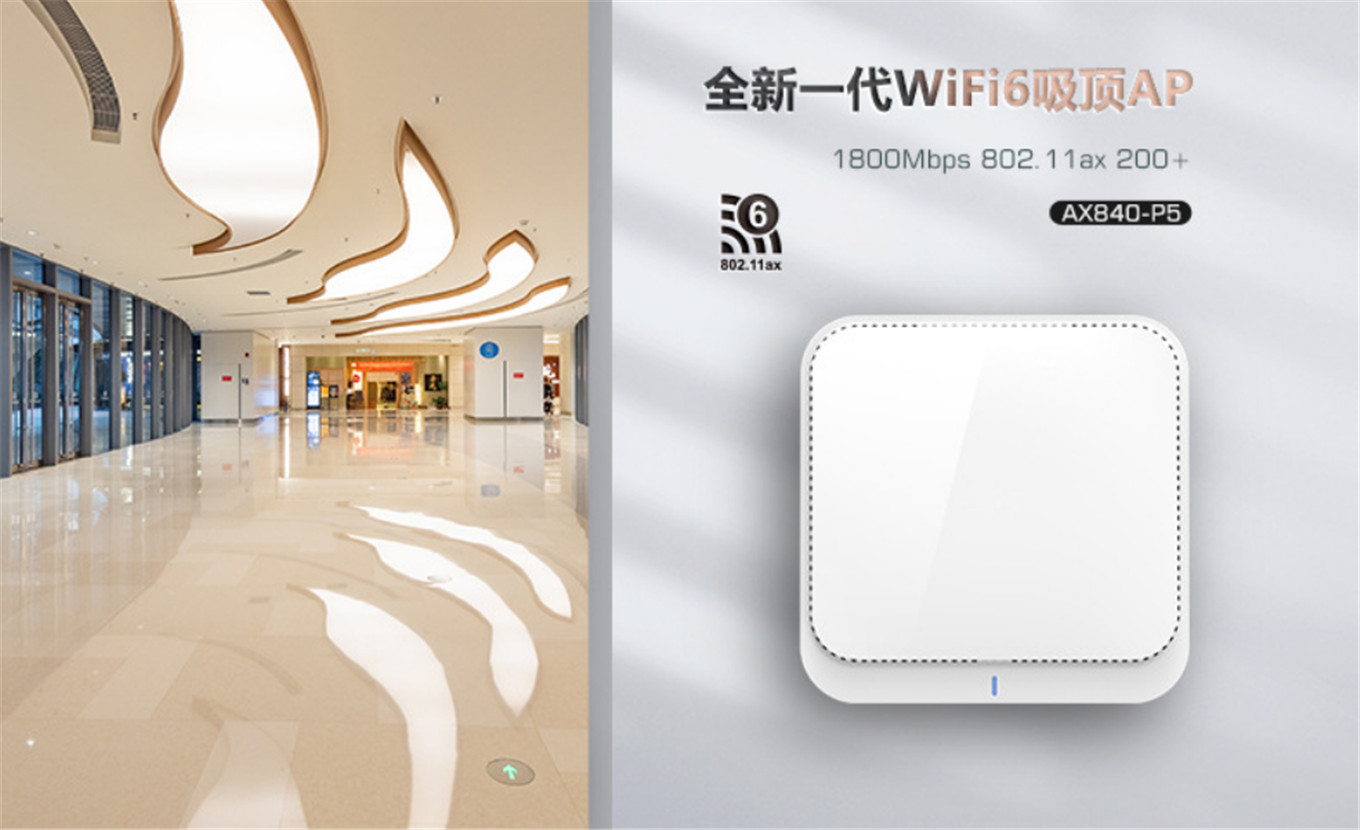

Commercial WiFi 6 high-power wireless AP 1800Mbps router indoor ceiling AP-01 (4)

Specifications

Model	AX840-P5
Flash	SPI NOR 8MB
DDR3	External 512MB*1
Nand Flash	128MB
2.4G RF	QCN5022-2.4G external FEM
5.8G RF	QCN5052-5.8G external FEM
2.4G Frequency	2.4GHz – 2.484GHz
2.4G Protocol	802.11 b / g / n /ax
5G Frequency	5.150GHz～5.850GHz
5G Protocol	802.11 a / n / ac /ax
Antenna	4*2.4G/5.8G dual band omin antennas: 3 dBi+
Data Rate	2.4G 574Mbps MIMO 22，5G 2402Mbps MIMO 22
2.4G EVM	802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28dB ; 802.11ax: ≤-35 dB
5G EVM	802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB
WAN	1*10/100/1000M RJ45, support 48V PoE
LAN	1*10/100/1000/2500M RJ45
Reset	Reset to factory settings by pressing 6-10 seconds
Indicators	WAN, LAN, tricolor LED(sys-red, 2.4G-green, 5.8G-blue)
Temperature	Working: -20°C to 45°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)
ESD	Air:±8K, Touch:±4K
Electrical Surge	Common Mode: 2K, Differential Mode: 1K
