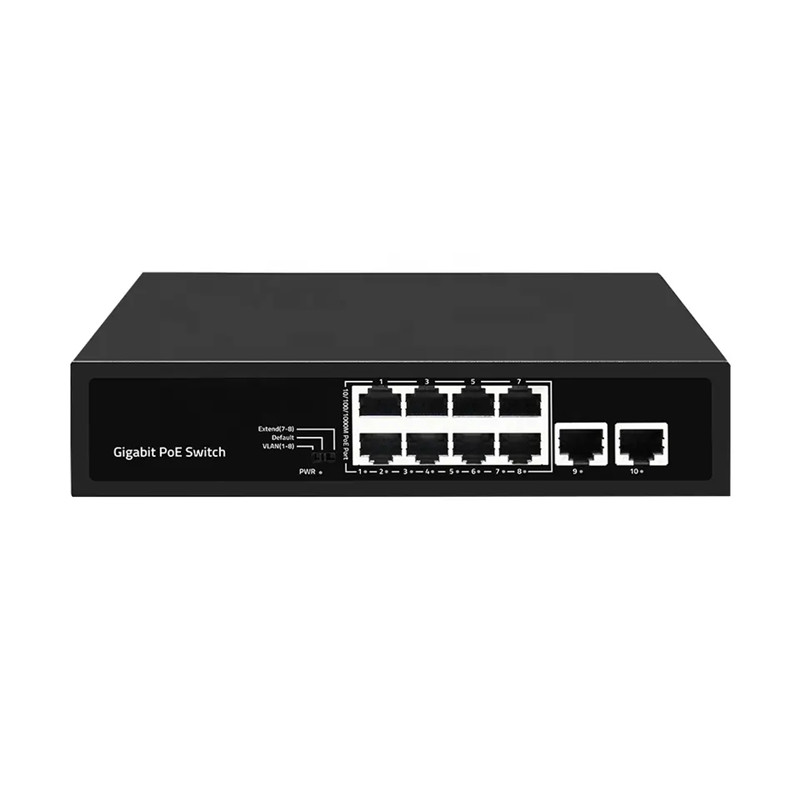

8 Port Ethernet Switch with 2 gigabit RJ45 port uplink POE network switch

Short Description:

HX-8G2J is 10 Port Full Gigabit Intelligent Standard PoE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of ethernet Switch can be 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data. It provides a comprehensive security access strategy, which is easy to use and is the ideal choice for gigabit access.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

● 8 ports 10/100/1000Mbps POE + 2 RJ45

● Support IEEE 802.3, IEEE 802.3u, IEEE 802.3u, IEEE802.3x standard;

● Ethernet Ports support 10/100/1000M self-adaptive;

● The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode;

● Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;

● Panel indicator monitoring status and help failure analysis;

● Zero configuration feature, automatically supplied to adaptive equipment;

● With DIP switch, support VLAN, Default and Extend modes;

● Support Surge protection: Common mode 4KV; ESD: Air 8KV, Contact 6KV.

Specifications

Product Model	HX-8G2J
Product Name	8-Port Gigabit Ethernet switch
Power	AC100-240V 50/60Hz
Total Power of machine	120W
Ethernet	8* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port
Switching Capacity	20Gbps
Pack forward rate	14.88Mpps
Memory cache	448Kb
MAC Address	2K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hour
Power Voltage	Input Voltage: AC 100-240 V 50-60Hz Power Supply: 52V2.3A
Working Environment	Working Temperature: -10~50°CStorage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing
