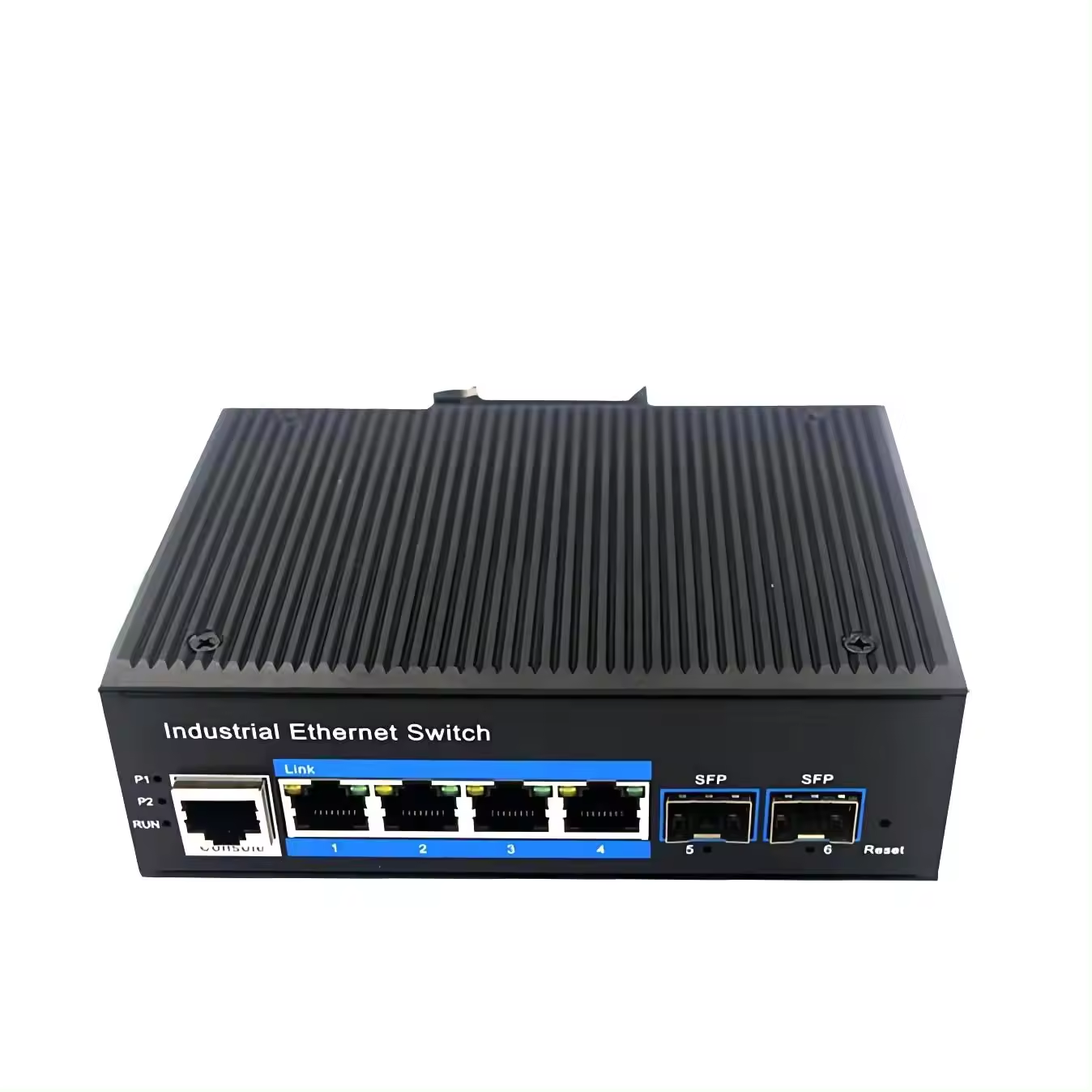

4-Port 10/100/1000BASE-TX+2G SFP Managed Industrial DIN Rail Industrial PoE switch

Short Description:

The industrial Gigabit PoE Switch is a standard 4-Port 10/100/1000Mbps High Power Industrial PoE Switch with 2 SFP

With the IP40 metal industrial case which provides a high level of immunity against electromagnetic interference and heavy electrical surges,

Being able to operate under the temperature range from -40 to 85 degrees C, the IES7211-8PGE2GF-4BT can be placed in almost any difficult environment.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

•12V to 52V DC, redundant power input

•-40℃ to 85℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

•DIN-rail and wall-mountable hardware design

•L2 management

•Support STP/RSTP/MSTP

•Web management, CLI

• IGMP snooping, QOS,VLAN,SNMP

• Easy to use: Plug and play, No configuration required

Specifications

Model No.	HX-SPF4P
10/100/1000Base-TX Port	4-Port RJ-45 auto-MDI / MDI-X
PoE Specification	PoE Standard: IEEE802.3af/ IEEE802.3at
	PoE ports:1-4 port support PoE
	Power Output:Max. 15.4 watts (IEEE 802.3af); Max. 30 watts (IEEE 802.3at)
	PoE port Auto detect AF/AT devices
	Output Voltage: DC48V
	Power Pin Assignment:1/2+;3/6-
	Power Type: End-span( Mid-span optional)
1000Base-FX Port	2G SFP Slot
Performance Specification	Bandwidth (switch capacity): 38Gbps Packet Buffer Memory: 12Mbit Packet Forwarding Rate: 28.3Mpps MAC Address Table: 8K
Installation	DIN rail
Maximum Frame Size	10240bytes
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP40 aluminum housing
LED Indicator	Power: RedFiber: Link 2(Green) Ethernet: Yellow
Power Input	48 to 57V DC redundant power
Power Consumption	< 10W
Surge protection	± 4KV
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class AIEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification	CE FCC Rohs compliance
MTBF	>300,000hours
Dimensions (W x D x H)	143.7 x 103 x 44.2 mm
Weight	Product Weight: 0.36KG Packing Weight: 0.46KG
Working Environment	Working temperature: -40~80℃ ; Storage temperature: -40~80℃ Relative Humidity: 5%~95 %( no condensation)
Warranty	5 Years
