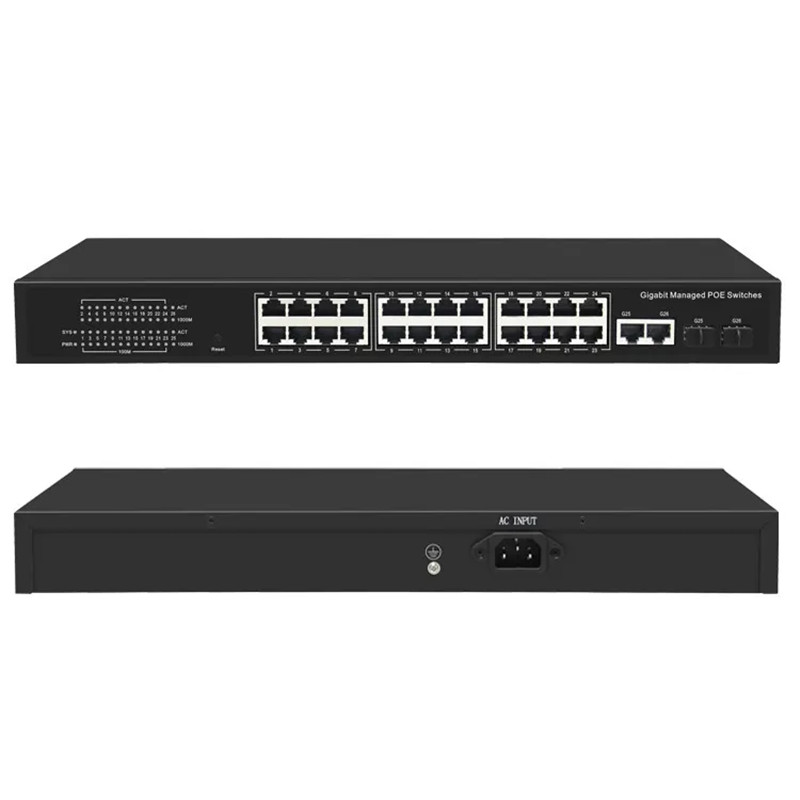

24 Ports Fiber POE switch with 2*1000M optical fiber port managed switch
Features
◆ Support 24*10/100M POE ports + 2*Gigabit Combo Port Intelligent WEB Managed POE Switch.
◆ IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x .
◆ Ethernet port supports 10/100M adaptation, POE supports IEEE802.3af, IEEE802.3at .
◆ Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
◆ Support port auto flip (Auto MDI/MDIX).
◆ Switching system using store-and-forward.
◆ All ports support wire-speed switching, support for jumbo frame transmission.
◆ Panel indicator monitoring status and help failure analysis.
◆ With QOS, MSTP, IGMP and other functions; 802.1X authentication, SNMP management and other functions.
◆ Layer 2 Management
◆ Support Poe Management POE Switch
◆ Internal Power 400W
Specifications
| Model | HX-24P-2FM |
| Port | 24*10/100/1000M |
| 2*Gigabit fiber SFP | |
| Management port | 1*Console |
| Reset KEY | 1 |
| bandwidth | 56Gbps |
| Packet forwarding | 40.32Mpps |
| POE port | 16 |
| POE standards | IEEE802.3af/at max 30W/port |
| CPU | 500MHZ |
| RAM | 128M |
| MAC | 8K |
| Buffer | 4.1M |
| FLASH | 16M |
| Transmission Mode | Store and forward |
| Environmental | working temperature : 0℃~50℃ |
| Storage temperature : -40℃~70℃ | |
| Operating humidity : 10%~90% Non coagulation | |
| Storage humidity : 5%~95% Non coagulation | |
| Product size | 440(L)*290(W)*45(H)mm |
| Packing size | 497(L)*393(W)*97(H)mm |
| Weight | 5kg |
| Power in | AC 100~240V 50/60Hz |
| Power | 400W |
Applications
Widely used in:
● Widely used in:
● Smart city,
● Corparate Networking
● Security Monitoring
● Wireless Coverage
● Industrial Automation System
● IP phone (teleconferencing system), etc.
