2.5G 100/1000M Network Switches 2Sfp 4 Port Gigabit Unmanaged Fiber Ethernet switch

Short Description:

This model of unmanaged switches are 2.5G Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 4*2.5Gbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 2.5Gbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.

Send email to us

Product Detail

Detail

Applications

OUR FACTORY

Product Tags

Features

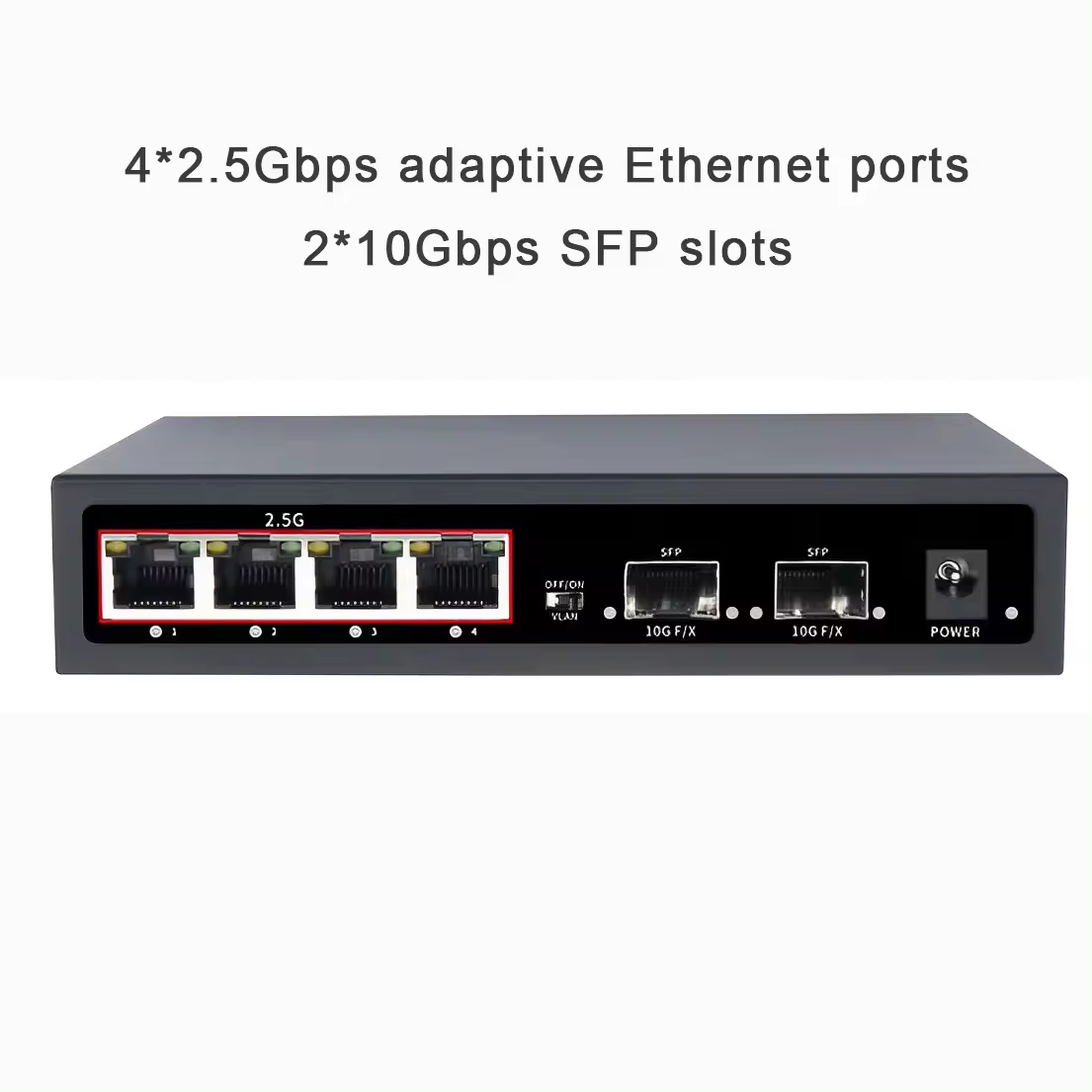

1. 4*2.5Gbps Ethernet port with auto-negotiation function

2. 2*10Gbps SFP slots

3.Support 2.5Gbps speed rate,MDI/MDIX

4.Support IEEE802.3x Flow control and back pressure control

5.Each port has the complete LED Indicator light

6.Support IEEE802.1d Spanning Tree

7.Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed

8.Support high performance QoS function on each port

9.Support multicast to avoid network congestion

10.Support 5-16V voltage input

11.Support 4K lightning protection of each port

Specifications

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX	IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree
CertificationsFCC	CE, FCC
Ethernet Port	Connector: 4*2.5G RJ45 port
	Connector: 2*10G SFP slot
	Data Rate: 2.5Gbps
	Distance: 100m
	UTP Type: UTP-6E or higher level
Performance	Processing Type: Store and Forward
	Transmission Mode: half/full-duplex with auto-negotiation function
	Back bandwidth: 60G
	Time Delay: ＜150μs
Power	Power type: external power supply
	Input Voltage: AC100V～240V 50/60Hz
	Connector: DC Socket
	Working Voltage: 12V
Environment	Storage Temperature: -40～70℃
	Operating Temperature: -10～55℃
	Relative Humidity: 5-90% ( no condensation)
Warranty	2 year
Physical Characteristics	Dimension: 160mm110mm33mm
	Color: Metal, Black
