1200Mbps Dual Band High Power Best WiFi 6 AP Outdoor Wireless AP

Short Description:

It is a high performance and high-speed 11AC 1200Mbps dual-band 1000mw high-power carrier-grade outdoor wireless access point. It Built-in high-power amplifier and high-gain antennas, comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than 802.11n speeds and uses a professional industrial-grade Qualcomm chip to delivery a combined extremely fast dual-band wireless data transfer rate of up to 1.2Gbps. (300Mbps over the 2.4GHz band and 867Mbps wireless speeds over the 5GHz band), supports multiple devices simultaneously.

Send email to us

Product Detail

Applications

OUR FACTORY

Product Tags

Features

● IP67 dustproof/waterproof design, which can adapt to various outdoor harsh environments
● IEEE 802.11ac standard, complies with IEEE 802 11a/b/g/n WiFi standard.

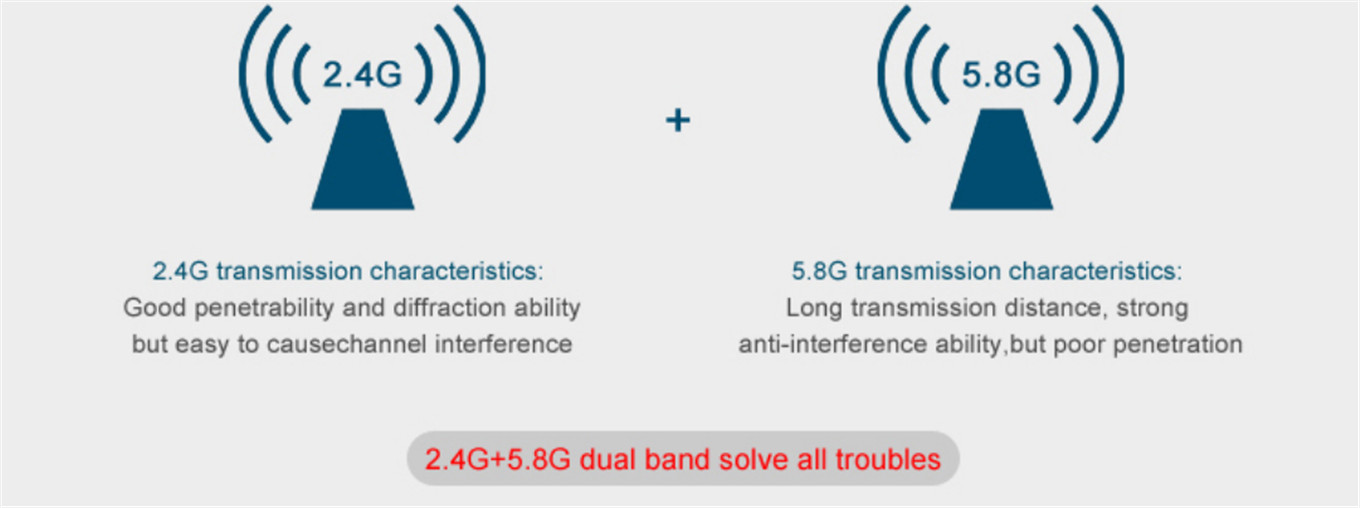

● Dual-Band Speed up to 2.4GHz 300Mbps, 5GHz 867Mbps.
● Robust IP67 weatherproof case and RJ45 Connector withstand harsh outdoor conditions
● Support IEEE 802.3at 48V Power over Ethernet (PoE) for Flexible Deployment.
● Provides high performance with multiple high gain antennas.
● Features up to 1000mW of power and enhanced receiver design.
● Wi-Fi Security with 802.1X, WAP, and WPA2.
● Industrial grade CPU with wide temperature range of -40~+70 ℃ for continuous and stable operation.

Other Features

● Industry-leading Hardware

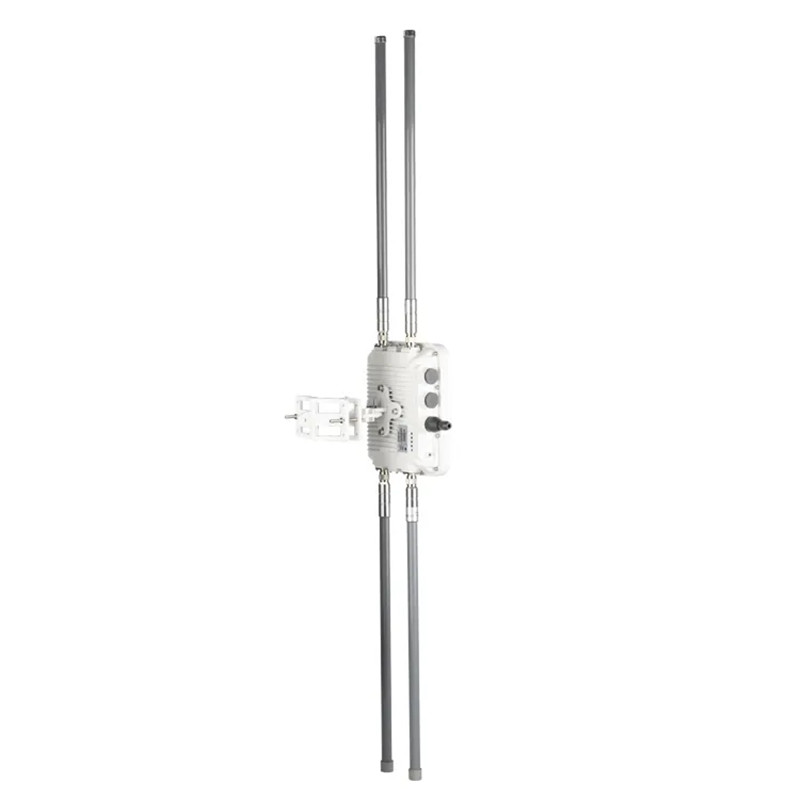

It consists of four external antennas with 2.4G and 5G dual frequency bands, making it possible to cover hard-to-reach dead zones. It's made of weatherproof and heat-resistant materials to deal with extreme weather.

● Super-fast Wireless AC Performance

It comes with next-generation 802.11AC wave2 MU-MIMO Wi-Fi technology, the access point operates on both 2.4GHz and 5GHz could reach up to 1200 Mbps. It allows more devices to connect simultaneously which is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

● Built-in High Power Amplifiers

It equipped with a large Internal amplifier to improve the quality of the signal. The power amplifier (PA) is used to increase the magnitude of power. On the other hand, the low-noise amplifier (LNA) is designed to minimize additional noise and increase the power of the signal.

Specifications

Product Model	BL290HW
Chipset	Qualcomm IPQ4019+QCA9886+QCA8075
Flash	32MB
RAM	256MB
WiFi Standard	IEEE802.11 a/b/g/n/ac Wave 2 MU-MIMO technology
Frequency	2.4GHz + 5.8GHz Dual Band
Wireless Data Rate	1200Mbps
Physical Interface	1 * 10/100/1000M RJ45
PoE Power	IEEE 802.3at 48V POE
RF Power	1000mW
Antenna	4*N type connector Omni-Directional 8dBi &12dBi antenna
Operation Mode	AP mode
Firmware	1. SDK Firmware 2. Official Original OpenWRT Firmware
Recommend	80-128 Users
Coverage Distance	400 meters
