1000M 2 optical 16 Network management Fibre switch

Short Description:

This model is a 16-ports Fibre Switch 16*1000M adaptive RJ45 port. These PoE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices.


Product Detail

Detail

Applications

OUR FACTORY

Product Tags

Features

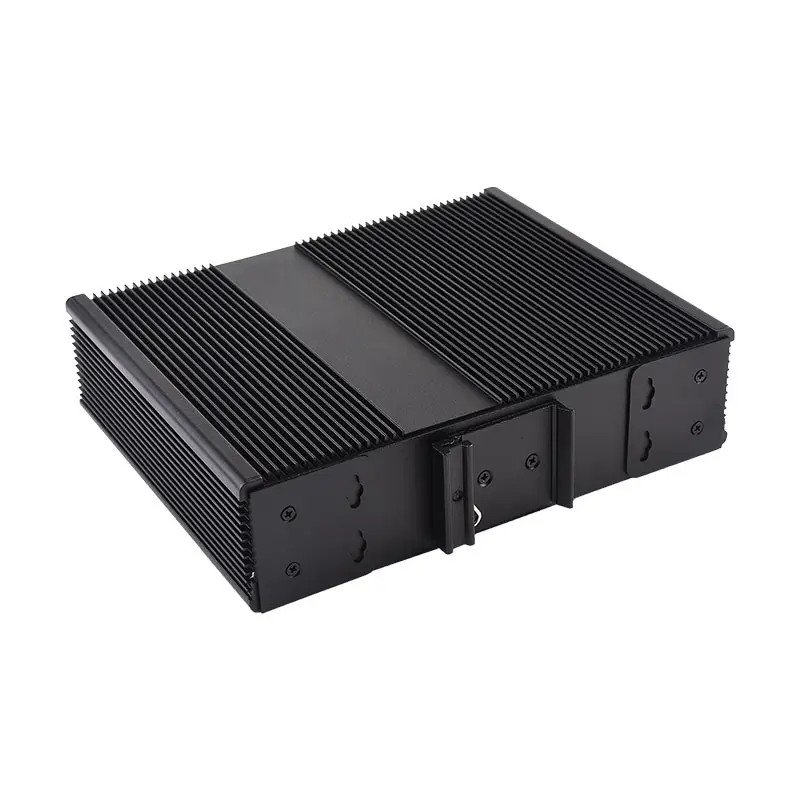

1000M 2 optical 16 Network management Fibre switch-01 (2)

1. 16* 10/100/1000M Adaptive RJ45 port

2. Supports 2 x 1000Base-FX ports (SFP slot), 16 x 10/100/1000Base-TX Adaptive Ethernet RJ45 connectors

3. Support IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3af/at standards

4. Support CLI, SNMP, WEB, VLAN management, Console/Telnet command line management, using self-developed ring technology, network self-healing time <20ms

5. DC10-58V wide voltage dual power supply redundancy backup, with anti-reverse connection protection function

6. Four-level lightning protection chip design, can effectively resist lightning strikes below 8kV, while anti-static up to 8-15kV

7. Fully industrial grade materials, IP40 protection level, low power consumption, industrial grade design: -40 to 85°C working temperature

8. Corrugated high strength aluminium alloy housing, DIN rail mounting

9. Support PoE extension, IEEE802.3af: max. power 15.4W, IEEE802.3at: max. power 30w.

Specifications

Service Interface 2*100/1000Base-X SFP, 16*10/100/1000 Base-T
Management interface 1 Console RJ45 control port
Power connector 3P Phoenix terminal, dual power redundancy
Twisted Pair 0-100m (CAT5e,CAT6)
Single-mode fibre 20/40/60/80/100KM
Multimode fibre 550m/2KM
Fiber Optic Interface LC/SC
Switching Capacity 52G
Packet forwarding rate 47.6Mpps
MAC address table 16K
VLAN support and number Support 4K support
Report buffer 8M
Forwarding delay 10us
Size 180*145*47mm
Weight 1.5kg

Applications

Widely used in:

● Smart city,

● Corparate Networking

● Security Monitoring

● Wireless Coverage

● Industrial Automation System

● IP phone (teleconferencing system), etc.
